Product Description

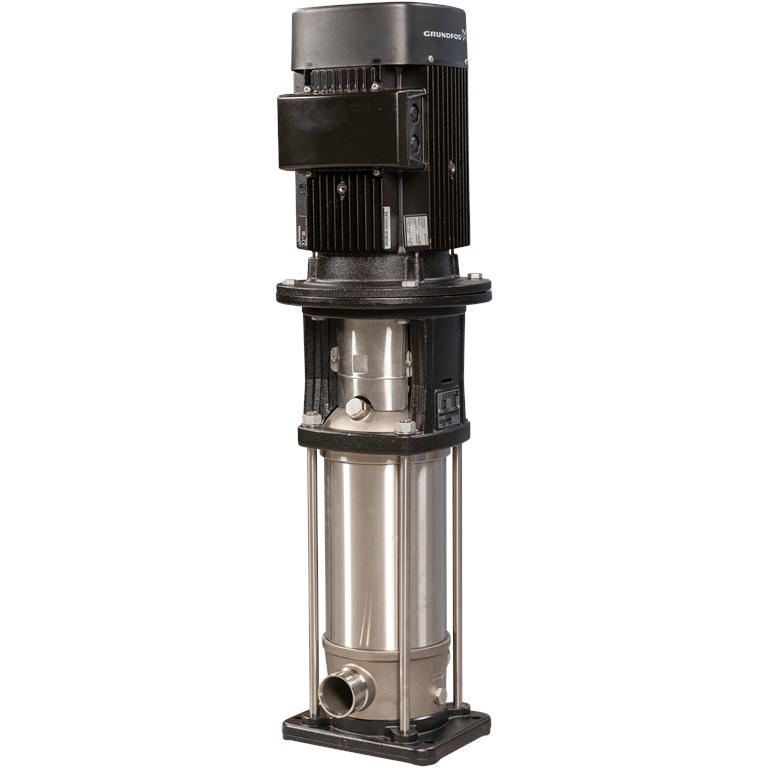

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. Pump materials in contact with the liquid are in high-grade stainless steel (EN 1.4401)
Product name: CRN 15-8 A-P-A-E-HQQE
Rated flow: 17 m³/h
Rated head: 90 m
Maximum head: 113 m
Approvals: CE,EAC,UKCA,SEPRO
Approvals for drinking water: WRAS,ACS
Materials:
Base: EN 1.4408, AISI 316
Impeller: EN 1.4401, AISI 316
Maximum ambient temperature: 60 °C
Maximum operating pressure: 25 bar
Type of connection: PJE
Size of inlet connection: DN 50, 2 inch
Size of outlet connection: DN 50, 2 inch
Pressure rating for connection: PN 50
Electrical data:
Motor standard: IEC
Motor type: 132SB
Rated power - P2: 7.5 kW
Power (P2) required by pump: 7.5 kW
Mains frequency: 50 Hz
Rated voltage: 3 x 380-415D/660-690YV
Rated current: 14,4-14,0/8,30-8,10 A
Starting current: 780-910 %
Cos phi - power factor: 0.88-0.82
Rated speed: 2910-2920 rpm
IE Efficiency class: IE3
Motor efficiency at full load: 90.1-90.4 %
Motor efficiency at 3/4 load: 90.8-90.9 %
Motor efficiency at 1/2 load: 90.8-90.4 %
Number of poles: 2
Enclosure class (IEC 34-5): 55 Dust/Jetting
Insulation class (IEC 85): F
Built-in motor protection: PTC
Motor No: 85U17522
Controls:
Frequency converter: None
Others:
Terminal box position: 6
Minimum efficiency index, MEI ≥: 0.70
Net weight: 98 kg
Gross weight: 120 kg
Shipping volume: 0.285 m³
Danish VVS No.: 385914080
